/Products / Fire safety / Smoke extraction / AVANTAGE
AVANTAGE
CloseAVANTAGE
AVANTAGE
CloseAVANTAGE
AVANTAGE
CloseAVANTAGE

AVANTAGE

Smoke evacuation shutter
Downloads
Technical Specifications

The Avantage smoke extraction door is characterised by its high air tightness. Available in single or double leaf versions. Models with a reset motor allow remote resetting. Developed according to European standard EN 12101-8 and tested with ventilation grille according to EN 1366-10.

Smoke extraction dampers are used in public premises, high-rise buildings, skyscrapers and residential buildings. They open to evacuate smoke in the event of a fire, maintaining the fire resistance level in the standby position.

  • High air tightness (tested at 1500 Pa)
  • Optimum net section (minimum pressure loss)
  • Tested according to EN 1366-10
  • Compliant with EN 12101-8, NF S 61937-1 and NF S 61937-10 standards
  • Approved for installation in lime-limestone ducts, "Staff" plaster, Tecniver, Glasroc, Extha and concrete
  • Maintenance-free
  • For use indoors.
  • Intermediate dimensions on request.
  • Reversible (left or right hinges)

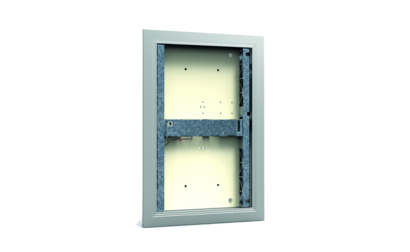

AVANTAGE 1V60: 1 shutter smoke evacuation damper with fire resistance till 60 minutes.

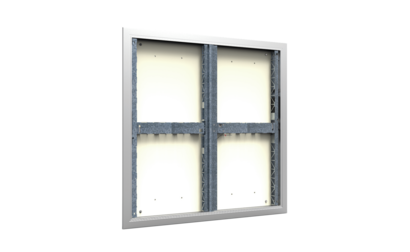

AVANTAGE 2V60: 2 shutters smoke evacuation damper with fire resistance till 60 minutes.

AVANTAGE 1V120: 1 shutter smoke evacuation damper with fire resistance till 120 minutes.

AVANTAGE 2V120: 2 shutters smoke evacuation damper with fire resistance till 120 minutes.

AVANTAGE 1V60 ME: 1 shutter smoke evacuation damper, fire resistance till 60 minutes with resetting motor.

AVANTAGE 1V120 ME: 1 shutter smoke evacuation damper, fire resistance till 120 miutes with resetting motor.
