593x593mm Rotational Diffuser (external dimensions) consisting of a flat plate lacquered in white with slots. Characterized by the system used for attaching and orienting the fins. These fins can be fixed with openings of 22º, 47º, or 62º.

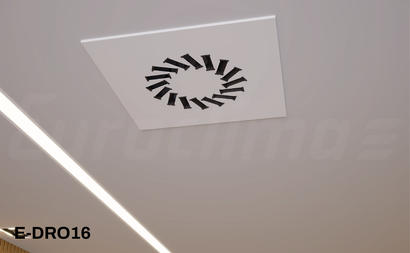

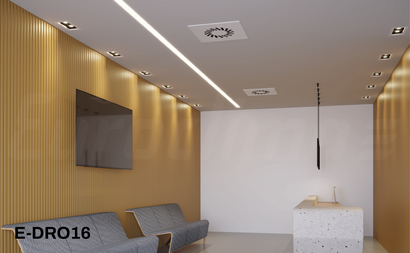

E-DRO16: Rotational diffuser with 16 slots for airflows up to 250 m³/h. Also available in 493x493 mm.

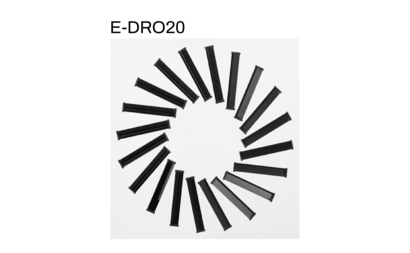

E-DRO20: Rotational diffuser with 20 slots for airflows up to 450 m³/h. Also available in 493x493 mm for airflows up to 315 m³/h.

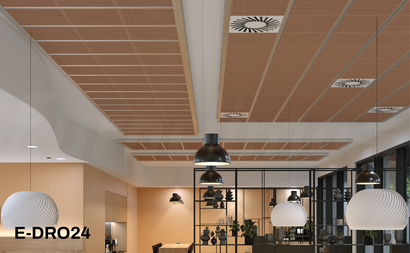

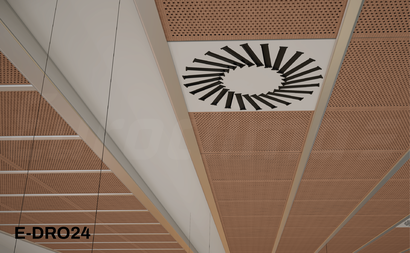

E-DRO24: Rotational diffuser with 24 slots for airflows up to 750 m³/h.

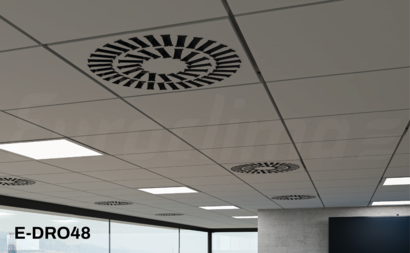

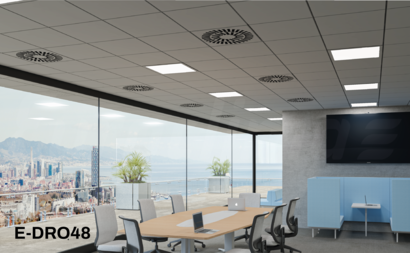

E-DRO48: Rotational diffuser with 48 slots for airflows up to 800 m³/h.

Fixtures: Supported on the ceiling framework, or attached to the plenum via a central screw.

Finish: White lacquered with black fins. Optionally, the fins can be white. Consult for other finishes.

Applications: Rotational diffusers are used to distribute air, generally in tertiary sector premises such as offices or shops. With the fins in the minimum opening position (22º), the diffuser covers a larger area for air conditioning. However, with the fins at maximum opening (47º), the air reaches a distance of up to 2.5 meters.
